Accessories

Pick and choose from this accessories list to ensure that your optical sensor system is a complete set-up that serves your application needs.

Underwater Sensor Protection

Anti-biofouling protection for shallow water environments. Compatible with all APHOX-L and APHOX-T shallow water devices.

Underwater Sensor Protection Cage

For all APHOX-L and APHOX-T shallow water devices, easily replaceable

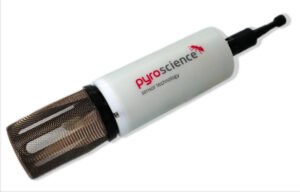

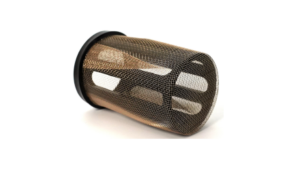

  • The APHOX®-CAGE-AF is a sensor protection cage with an anti-(bio)fouling net (copper alloy), specifically designed to seamlessly integrate with the shallow-water AquapHOx®-Logger and -Transmitter. The sensor protection cage can be easily screwed onto the thread of the AquapHOx® device.  For optimal protection, the sensor protection cage should be combined with the anti-(bio) fouling net (copper alloy) for the sensor cap protection cage APHOX®-CAP-AF.

Underwater Sensor Protection Cap

Compatible with all sensor caps with SUB-connection, easily replaceable

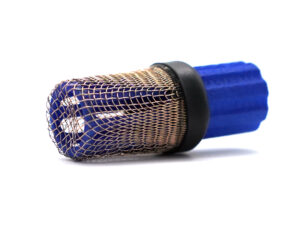

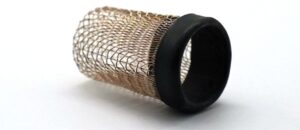

The APHOX®-CAP-AF is an anti-(bio)fouling net for sensor cap protection cage of the (UTR) OXCAP- and PHCAP-sensor caps with underwater SUB-connector. The net can be used around the sensor cap to protect it from the accumulation of marine organisms and biofouling. APHOX®-CAP-AF can be easily attached to and removed from the protection cage of all cap sensors with SUB-connector. It must be removed before sensor calibration and then re-attached.

For optimal protection, the anti-(bio)fouling net (copper alloy) for the sensor cap protection cage APHOX®-CAP-AF should be combined with the sensor protection cage APHOX®-CAGE-AF.

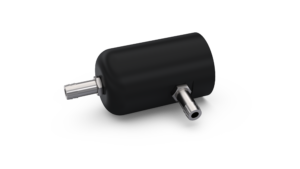

Underwater Flow-through Cell

Fully Submersible

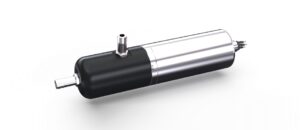

The APHOX®-FTC is a flow-through-cell that can be used with all APHOX®-T and APHOX®-L devices. It allows connection of these devices to a flow path. It can be used fully submerged, as well as in the laboratory, and can be combined with all PyroScience oxygen and pH cap sensors with SUB-connector. Typical examples for usage are pumped CTD systems, FerryBox Systems, and industrial applications.

Calibration Capsules

Each pack contains 10 capsules.

Oxygen and pH Calibration Capsules

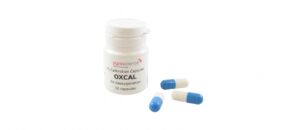

  • OXCAL: 0% oxygen calibration capsules for 50ml solution

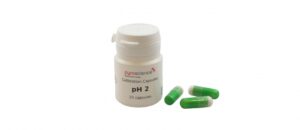

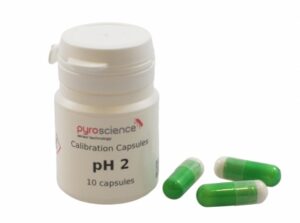

  • PHCAL2: Buffer capsules for 100ml acid buffer (pH 2)

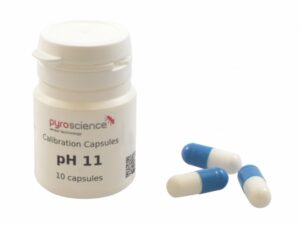

  • PHCAL11: Buffer capsules for 100ml basic buffer (pH 11)

Accessories for Contactless Sensors

Universal Accessories

Compatible with all devices.

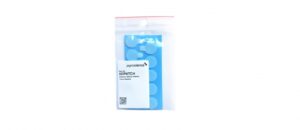

  • ADPATCH – adhesive sticker patches, for piercing with protected O2 minisensors

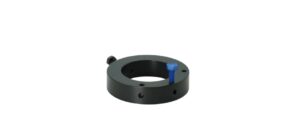

  • ADVIAL20 – adapter ring for single analyte 20mL vials (for SPFIB-BARE and PICFIB2)

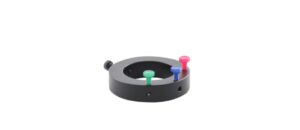

  • ADVIAL20T – adapter ring for 20mL vials with up to 3 sensors (for SPFIB-BARE and PICFIB2)

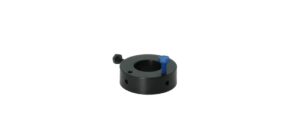

  • ADVIAL4 – adapter ring for 4mL vials with up to 2 sensors (for SPFIB-BARE and PICFIB2)

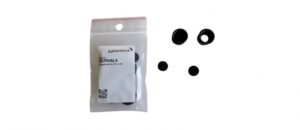

  • SEPVIAL4 – septa with lids (with and without hole), for 4mL vials

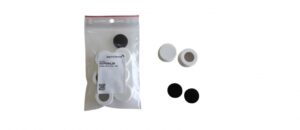

  • SEPVIAL20 – septa with lids (with and without hole), for 20mL vials

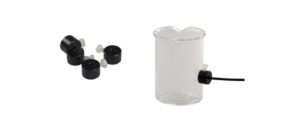

  • SPADBAS – basic spot adapter for sensor spot readout (for SPFIB-BARE, PICFIB2 or PICROD2)

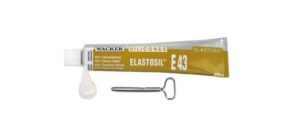

  • SPGLUE – transparent silicon glue Elastosil E43 (ca. 90 ml), for fixing sensor spots and SPADBAS adapters at container walls

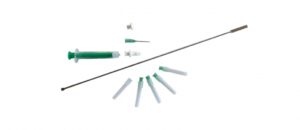

  • SPGLUE-KIT – gluing kit, contains 1 spoon spatula, disposable syringe with screw cap, Luer-Lock fixture, 5 flat needles

Optical Fibers for Contactless Sensors

For meters with ST-connector, all compatible with SPADBAS basic spot adapter.

  • SPFIB-BARE – bare fiber on sensor facing end, 1m length, for measurements through 0-2mm thick walls

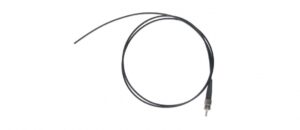

  • SPFIB-BARE-CL2 – bare fiber on sensor facing end, 2m length, for measurements through 0-2mm thick walls

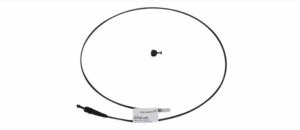

  • SPFIB-LNS – fiber with lens for measurements through 3-10mm thick walls, 1m length
  • SPFIB-LNS-CL2 – fiber with lens for measurements through 3-10mm thick walls, 2m length

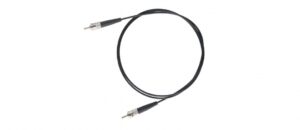

  • SPFIB – ST-connector on sensor facing end, 1m length, for measurement through 0-2mm thick walls

Optical Fibers and Rods for Contactless Sensors

For meters with PICO-Connector.

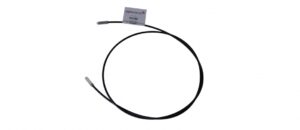

  • PICFIB2 – fiber for contactless readout, 2mm diameter, 1m length, for measurements through 0-10mm thick transparent walls

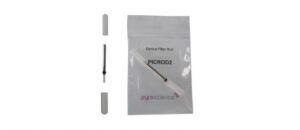

  • PICROD2 – stainless steel tube, 3mm diameter, 40mm length, for measurements through 0-10mm thick transparent walls (oxygen sensors) and 0-5mm thick transparent walls (pH sensors)

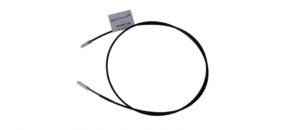

  • PICFIB2-LNS – stainless steel tube, 3mm diameter, 1m length, with focusing lens, for microfluidic applications
  • PICROD2-LNS – stainless steel tube, 3mm diameter, 41mm length, for microfluidic applications

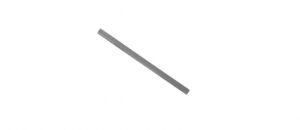

  • PICROD3 – stainless steel tube, 3mm diameter, 51.5mm length, for measurement through 0-20mm thick transparent walls (oxygen sensors) and 0-10mm thick transparent walls (pH sensors)

Optical Fibers for Contactless Sensors

For underwater devices with SUB-connector, all compatible with SPADBAS basic spot adapter.

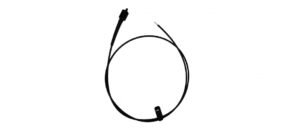

  • SPFIB-LNS-SUB – optical fiber for measurement thorough transparent windows, 1m length

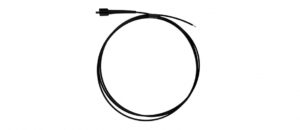

  • SPFIB-LNS-CL2-SUB – optical fiber for measurement thorough transparent windows, 2m length

Micromanipulators

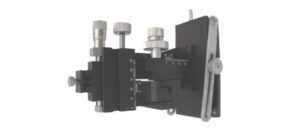

  • MM33 – manual micromanipulator, 10mm micrometer screw for z-axis, max. 10um resolution

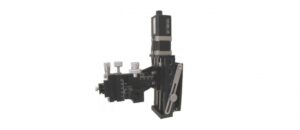

  • MU1 – 1-axis motorized micromanipulator, motorized z-axis with 0.1 um resolution

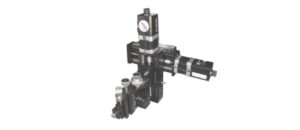

  • MUX2 – 2-axes motorized micromanipulator, manual positioning in x,y,z; motorized x- and z-axis with 0.1 um resolution

Sensor Kits

Starter Kits for a FireSting Device

Limit one per device purchase.

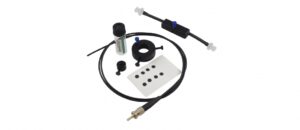

  • OXKIT-CTL – contactless oxygen sensor kit (includes OXFTC, OXSP5, OXVIAL4, SPFIB-BARE, SPADBAS, ADVIAL4T)

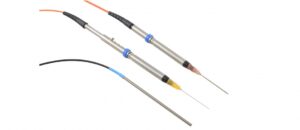

  • OXKIT-FOP – fiber-optic oxygen sensor kit (includes OXR50, OXF1100, OXROB10)
  • OXKIT-FOP-OI – fiber-optic oxygen sensor kit (includes OXR50-OI, OXF1100-OI, OXROB10)

Starter Kit for a PICO Device

Limit one per device purchase.

  • OXKIT-CTL-PIC – contactless oxygen sensor kit. Includes: OXFTC, OXSP5, OXVIAL4, PICFIB2, SPADBAS, ADVIAL4T

Accessories Kits for Sensor Vials

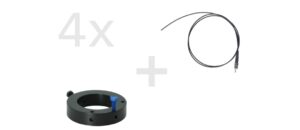

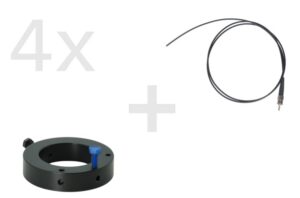

  • ADVIAL20-KIT – adapter ring kit for single analyte 20 mL respiration vials (4 x optical fiber SPFIB-BARE-CL2 and 4 x adapter ring ADVIAL20)

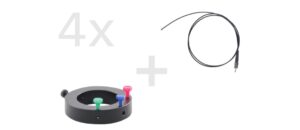

  • ADVIAL20T-KIT – adapter ring kit for multi-analyte 20 mL respiration vials (4 x optical fiber SPFIB-BARE-CL2 and 4 x adapter ring ADVIAL20T)

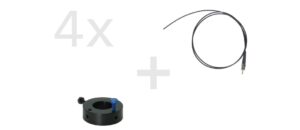

  • ADVIAL4-KIT – adapter ring kit for single analyte 4 mL respiration vials (4 x optical fiber SPFIB-BARE-CL2 and 4 x adapter ring ADVIAL4)
