Underwater Sensor Solutions

The simple, flexible and compact AquapHOx underwater sensor systems include stand-alone loggers with internal data storage for long-term deployment and transmitters which offer fast sampling and easy integration into existing set-ups with analog outputs.

Both loggers (APHOX-LX, APHOX-L-O2, and APHOX-L-pH) and transmitters (APHOX-TX, APHOX-T-O2, and APHOX-T-pH) are available in titanium housing for deep-sea deployments (down to 4000 m) and in POM housing for shallow water monitoring (down to 100 m). For oceanic total scale pH and ultra-fast/ultra-trace oxygen measurements at depths up to 6000 m, PyroScience also offers the APHOX-LX6 logger with autonomous in situ data collection and the APHOX-TX6 real-time transmitter for in situ profiling and flux measurements.

All AquapHOx devices are ideally suited for measurements in a variety of marine monitoring applications, including:

  • Ocean and Coastal Habitats
  • Deep Sea Research
  • Open Ocean Research
  • Water Column Profiling
  • Sediment Profiling
  • Oxygen Minimum Zones
  • Aquaculture
  • In-Situ Incubations, etc.
Request a Quote

Deep Sea Loggers and Transmitters

Operation to depths of 4000m with a broad range of O2, pH, and temperature sensors

  • APHOX-LX

    • Stand-alone logging for >1 year

    • Post deployment data download

    • Integrated rechargeable battery

    • Integrated fast Pt100 temperature sensor

    • Compatible with a broad range of oxygen and pH sensors

    • Operation down to 4000 m

  • APHOX-LX6

    • Stand-alone logging for >1 year

    • Post deployment data download

    • Integrated rechargeable battery

    • Integrated fast Pt100 temperature sensor

    • Compatible with a broad range of oxygen and pH sensors

    • Operation down to 6000 m depth

  • APHOX-TX

    • Measurements with up to 40 Hz sampling rate

    • For real-time profiling and eddy covariance set-ups

    • Analog outputs / USB / RS485 / Modbus

    • Integrated fast Pt100 temperature sensor

    • Compatible with a broad range of oxygen and pH sensors

    • Operation down to 4000 m

  • APHOX-TX6

    • Measurements with up to 40 Hz sampling rate

    • For real-time profiling and eddy covariance set-ups

    • Analog outputs / USB / RS485 / Modbus

    • Integrated fast Pt100 temperature sensor

    • Compatible with a broad range of oxygen and pH sensors

    • Operation down to 6000 m depth



AquapHOx Logger Specifications
AquapHOx Transmitter Specifications

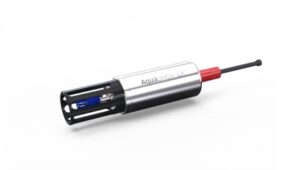

APHOX-LX
APHOX-TX

Shallow Water Oxygen Loggers and Transmitters

Operation to depths of 100m

  • APHOX-L-O2

    • Broad range of optical oxygen sensors

    • Stand-alone logging for >1 year

    • Integrated rechargeable battery

    • Integrated fast Pt100 temperature sensor

  • APHOX-T-O2

    • Measurements with 40Hz possible​

    • For profiling and eddy covariance set-ups

    • Broad range of optical oxygen sensors

    • Analog outputs / USB / RS485 / Modbus

AquapHOx Logger Specifications
AquapHOx Transmitter Specifications
APHOX-L-O2
APHOX-T-O2

Shallow Water pH Loggers and Transmitters

Operation to depths of 100m

  • APHOX-L-PH

    • Broad range of optical pH sensors​

    • Stand-alone logging for >1 year

    • Integrated rechargeable battery

    • Integrated fast Pt100 temperature sensor

  • APHOX-T-PH​

    • Broad range of optical pH sensors

    • Analog outputs / USB / RS485 / Modbus

AquapHOx Logger Specifications
AquapHOx Transmitter Specifications

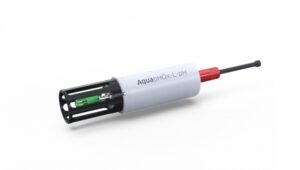

APHOX-L-PH
APHOX-T-PH

Shallow Water Oxygen OEM Meter

Operation to depths of 50m

  • APHOX-S-O2 with APHOX-S-OXCAP

    • Factory calibrated ​

    • Corrosion and biofouling resistant housing

    • For temperature-compensated oxygen measurements

    • Analog outputs/RS485/Modbus

    • Operation down to 50 m depths

    • Exchangeable oxygen sensor caps

APHOX-S Datasheet

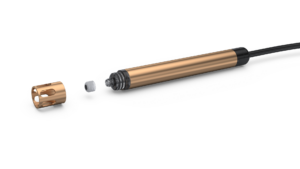

APHOX-S-ScrewCap Assembly v1

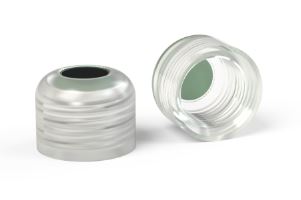

APHOX-S-OXCAP

Sensor Options for AquapHOx Loggers and Transmitters

All sensors include underwater SUB-connector

Oxygen Sensors and Caps

No oxygen consumption, negligible drift

  • OXR430-UHS-SUB: Retractable fiber 430µm in diameter, ultra-high speed response time (t90 < 0.3s)

  • OXR430-HS-SUB: Retractable fiber 430µm in diameter, high speed response time (t90 < 0.8s)

  • OXR430-OI-SUB: Retractable fiber 430µm in diameter, optically isolated (OI)

  • OXR50-OI-SUB: Retractable fiber 230µm in diameter, 50-70µm sharp sensor tip, optically isolated (OI)

  • OXR50-UHS-SUB: Retractable fiber 230µm in diameter, 50-70µm sharp sensor tip, ultra-high speed

  • OXR50-HS-SUB: Retractable fiber 230µm in diameter, 50-70µm sharp sensor tip, high speed

  • OXR50-SUB: Retractable fiber 230µm in diameter, 50-70µm sharp sensor tip

  • OXF1100-UHS-SUB: Fixed sensor tip surrounded by needle, protrudes ca. 2mm, ultra-high response

  • OXF1100-HS-SUB: Fixed sensor tip surrounded by needle, protrudes ca. 2mm, high response

  • OXF1100-SUB: Fixed sensor tip surrounded by needle, protrudes ca. 2mm

  • OXR50-SUB: Retractable fiber 230µm in diameter, 50-70µm sharp sensor tip

  • OXB50-UHS-SUB: Bare fiber, 50-70µm sharp sensor tip, ultra-high speed

  • OXB50-HS-SUB: Bare fiber, 50-70µm sharp sensor tip, high-speed

  • OXB50-SUB: Bare fiber, 50-70µm sharp sensor tip

  • OXB430-SUB: Optical fiber 430µm in diameter
  • OXB430-HS-SUB: Optical fiber 430µm in diameter, high-speed

  • OXB430-UHS-SUB: Optical fiber 430µm in diameter, ultra-high speed

  • OXROB10-SUB: Stainless steel 10cm long, 3mm in diameter, optically isolated (OI)

  • OXROBSC-SUB: Robust screw cap probe with 2 oxygen screw cap sensors, optically isolated (OI)

  • OXROB10-CL4-SUB: Stainless steel 10cm long, 3mm in diameter, 4m cable length, OI

  • OXROB3-SUB: Stainless steel 3cm long, 3mm in diameter, optically isolated (OI)

  • OXROB3-CL4-SUB: Stainless steel 3cm long, 3mm in diameter, 4m cable length, OI

  • OXCAP-SUB: Optical oxygen sensor screw cap, fast sensor with low drift

  • OXCAP-AF-SUB: Optical O2 sensor cap with antifouling-layer

  • UTROXCAP-SUB: Optical ultra-trace oxygen sensor screw cap, fast sensor with low drift

  • OXCAPG-UHS-SUB: Optical oxygen sensor screw cap, ultra high speed response time (t90 < 0.5s)

  • OXCAPG-HS-SUB: Optical oxygen sensor screw cap, high speed response time (t90 < 1s)

  • OXFLOW-HS: Sterile oxygen flow-through cell with integrated sensor, high speed

  • OXSP5-SUB: Optical oxygen sensor screw cap, ultra high speed response time (t90 < 0.5s)

OXR430-UHS-SUB
OXR50-OI-SUB
OXROBSC-SUB
OXROB10-CL4-SUB
OXROB3-SUB
OXCAP-SUB
UTROXCAP-SUB

pH Sensors and Caps

Minimal cross-sensitivity to high ionic strength

  • PHCAP-PK8T-SUB: Robust optical pH sensor cap, 7.0-9.0 range pH total scale

  • PHCAP-PK8-SUB: Robust optical pH sensor cap, measurement range pH 7.0-9.0

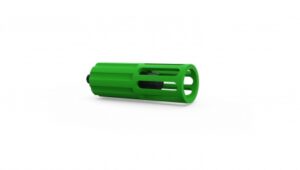

  • PHCAP-PK7-SUB: Robust optical pH sensor cap, measurement range pH 6.0-8.0

  • PHCAP-PK7-AF-SUB: Optical pH sensor cap with antifouling-layer for pH range 6-8

  • PHCAP-PK8-AF-SUB: Optical pH sensor cap with antifouling-layer for pH range 7-9

  • PHCAP-PK8T-AF-SUB: Optical pH sensor cap with antifouling-layer for pH range 7-9 (total scale)

  • PHROBSC-PK8T-SUB: Robust pH Probe, 6.0-8.0 range pH total scale, exchangeable screw caps

  • PHROBSC-PK8-SUB: Measurement range pH 6.0-8.0, exchangeable Screw Caps

  • PHROBSC-PK7-SUB: Measurement range pH 7.0-9.0, exchangeable Screw Caps

  • PHSP5-PK8T: Sensor spots, 5mm in diameter, for measurements in closed containers

PHCAP-PK7-SUB
PHROBSC-PK8T-SUB

Temperature Sensors

Measurement range of 0°C – 50°C, Fast response time (<<1s)

  • TPROBSC-SUB: Only for shallow-water applications

  • TPR430-SUB: Retractable fiber 430µm in diameter

  • TPB430-SUB: Optical fiber 430µm in diameter

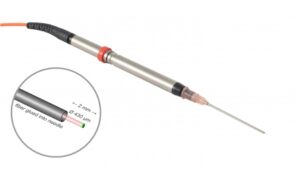

  • TPF1100-SUB: Fixed needle temperature probe

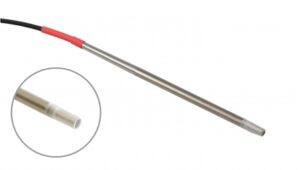

TPROBSC-SUB

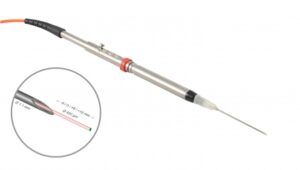

TPR430-SUB
TPB430-SUB
TPF1100-SUB

PICO Series Underwater OEM Meters

1-channel underwater OEM devices

  • PICO-O2-SUB​​

    • Broad range of different compatible sensors

    • Compact dimensions 59 x Ø17 mm

    • Very low power consumption

    • UART interface

  • PICO-PH-SUB

    • Compact dimensions 59 x Ø17 mm

    • Very low power consumption

    • UART interface

PICO-O2-SUB Specifications
PICO-pH-SUB Specifications

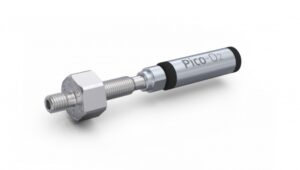

PICO-O2-SUB
PICO-PH-SUB

Sensor Options for PICO Series Underwater OEM Meters

All Sensors include Underwater SUB-connector

​Oxygen Sensors and Caps

No oxygen consumption, negligible drift

  • OXCAP-SUB: Optical oxygen sensor screw cap, fast sensor with low drift

  • OXCAP-AF-SUB: Optical O2 sensor cap with antifouling-layer

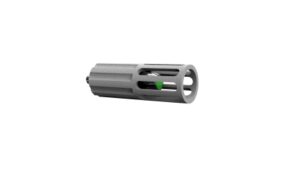

  • UTROXCAP-SUB: Optical ultra-trace oxygen sensor screw cap, fast sensor with low drift

  • OXCAPG-UHS-SUB: Optical oxygen sensor screw cap, ultra high-speed response time (t90 < 0.5s),

  • OXCAPG-HS-SUB: Optical oxygen sensor screw cap, high-speed response time (t90 < 1s)

  • OXSP5-SUB: Sensor spots (8 pcs.) 5mm in diameter, no oxygen consumption

  • OXR430-UHS-SUB: Retractable fiber 430µm in diameter, ultra-high speed response time (t90 < 0.3s)

  • OXR430-HS-SUB: Retractable fiber 430µm in diameter, high-speed response time (t90 < 0.8s)

  • OXR430-OI-SUB: Retractable fiber 430µm in diameter, optically isolated (OI)

  • OXR430-SUB: Retractable fiber 430µm in diameter

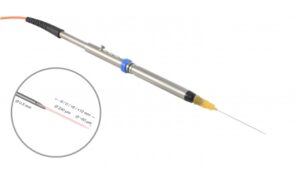

  • OXR50-UHS-SUB: Retractable fiber, 50-70µm sensor tip, ultra-high speed response time (t90 < 0.3s)

  • OXR50-HS-SUB: Retractable fiber 230µm, 50-70µm sensor tip, high speed response time (t90 < 0.8s)

  • OXR50-OI-SUB: Retractable fiber 230µm in diameter, 50-70µm sharp sensor tip, optically isolated (OI)

  • OXROBSC-SUB: Robust screw cap probe with 2 oxygen screw cap sensors, optically isolated (OI)

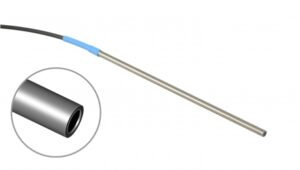

  • OXROB10-CL4-SUB: Stainless steel 10cm long, 3mm in diameter, 4m cable length (CL4), OI

  • OXROB3-SUB: Stainless steel 3cm long, 3mm in diameter, optically isolated (OI)

  • OXROB3-CL4-SUB: Stainless steel 3cm long, 3mm in diameter, 4m cable length (CL4), OI

  • OXF50-UHS-SUB: Fixed needle, 50-70µm sensor tip protrudes ca. 6mm, ultra-high speed (t90 < 0.3s)

  • OXF50-HS-SUB: Fixed needle, 50-70µm sharp sensor tip protrudes ca. 6mm, high speed (t90 < 0.8s)

  • OXF50-SUB: Fixed needle sensor tip, sensor tip protrudes ca. 6mm, 50-70µm sharp sensor tip

  • OXF1100-UHS-SUB: Fixed needle, Sensor tip protrudes ca. 2mm, ultra-high speed (t90 < 0.3s)

  • OXF1100-HS-SUB: Fixed needle sensor tip, sensor tip protrudes ca. 2mm, high speed (t90 < 0.8s)

  • OXF1100-SUB: Fixed needle sensor tip, sensor tip protrudes ca. 2mm

  • OXB430-UHS-SUB: Optical fiber 430µm in diameter, ultra-high speed response time (t90 < 0.3s)

  • OXB430-HS-SUB: Optical fiber 430µm in diameter, high speed response time (t90 < 0.8s)

  • OXB430-SUB: Optical fiber 430µm in diameter

  • OXB50-UHS-SUB: 50-70µm sharp sensor tip, ultra-high speed response time (t90 < 0.3s)

  • OXB50-HS-SUB: 50-70µm sharp sensor tip, high speed response time (t90 < 0.8s)

  • OXB50-SUB: 50-70µm sharp sensor tip

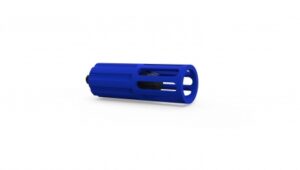

OXCAP-SUB
UTROXCAP-SUB

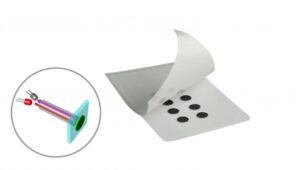

OXSP5-SUB

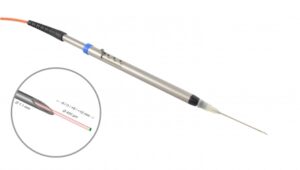

OXR430-UHS-SUB
OXR50-UHS-SUB

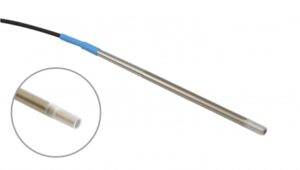

OXROBSC-SUB
OXROB10-CL4-SUB

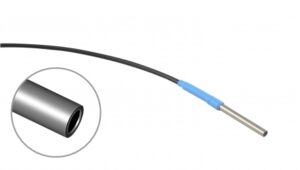

OXROB3-SUB

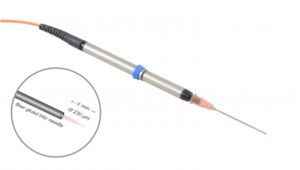

OXF50-UHS-SUB

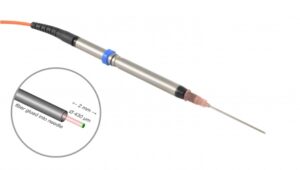

OXF1100-UHS-SUB

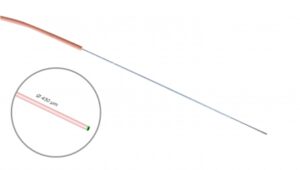

OXB430-SUB

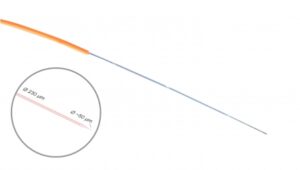

OXB50-SUB

pH Sensors and Caps

Minimal cross-sensitivity to high ionic strength

  • PHCAP-PK8T-SUB: Total Scale pH measurement, robust optical pH sensor cap

  • PHCAP-PK8-SUB: Robust optical pH sensor cap, measurement range pH 7.0-9.0

  • PHCAP-PK7-SUB: Robust optical pH sensor cap, measurement range pH 6.0-8.0

  • PHCAP-PK7-AF-SUB: Optical pH sensor cap with antifouling-layer for pH range 6-8

  • PHCAP-PK8-AF-SUB: Optical pH sensor cap with antifouling-layer for pH range 7-9

  • PHCAP-PK8T-AF-SUB: Optical pH sensor cap with antifouling-layer for pH range 7-9 (total scale)

  • PHROBSC-PK8T-SUB: Robust pH Probe, 6.0-8.0 range pH total scale,  exchangeable screw caps

  • PHROBSC-PK8-SUB: For pH measurements between pH 6.0-8.0,  exchangeable screw caps

  • PHROBSC-PK7-SUB: For pH measurements between pH 7.0-9.0, exchangeable screw caps

PHCAP-PK7-SUB

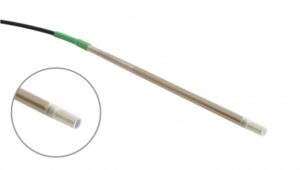

PHROBSC-PK7-SUB

Accessories

  • PHCAL2: Required for acid calibration of optical pH sensors, 10 capsules

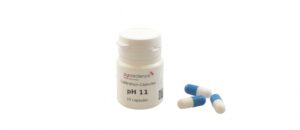

  • PHCAL11: Required for basic calibration of optical pH sensors, 10 capsules

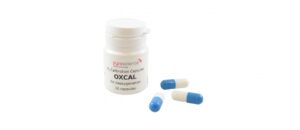

  • OXCAL: Recommended 0% O2 calibration of optical oxygen sensors, 10 capsules

  • APHOX-T-PIG: Transmitter inline cable (pigtail) for custom cable assemblies, ca. 60cm length

  • APHOX-T-VECTOR: For Nortek® Vector acoustic doppler velocimeter connection

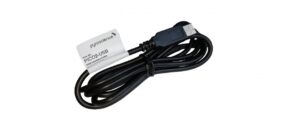

  • PICO-USB: USB interface cable for evaluation of PICO-O2, PICO-PH, and PICO-T, incl. software

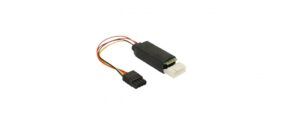

  • PICO-EXT: Modbus analog out module for the ultra-compact optical PICO OEM modules

  • TSUB21-NC: Flexible Teflon-coated temperature probe, no connector for soldering, Tip and cable submersible in water

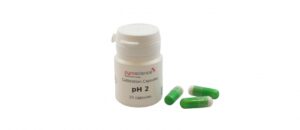

PHCAL2
PHCAL11

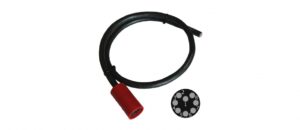

APHOX-T-PIG

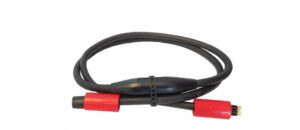

APHOX-T-VECTOR
PICO-USB
PICO-EXT
TSUB21-NC

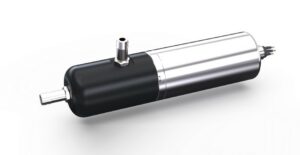

APHOX-FTC Contactless Underwater Flow-through-cell

  • For APHOX®-T and APHOX®-L devices

  • Fully submergable

  • Usable in the Field and In-Lab

  • Compatible with all CAP and SUB-connector sensor

APHOX-FTC
