Mercury Vapor Analyzer (Light-915M2)

A lightweight, compact option for mercury detection in ambient air

Available for Download

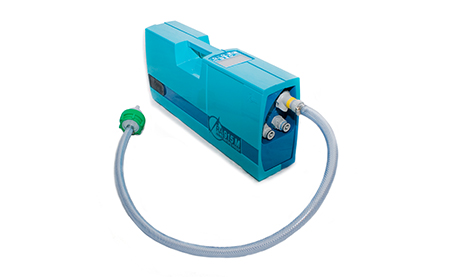

The Light-915M2 is a compact, portable mercury analyzer designed for direct Hg vapor measurement in ambient air. The Light-915M2 is a good option for applications that do not require the low detection limits of the RA-915M model but may be subjected to high concentrations that necessitate a wide measurement range.

NOTE: If you would like to view the discontinued, previous versions of this mercury analyzer (Light-915), please click here. Ohio Lumex will continue servicing Light-915 units until further notice.

Product Details

Mercury Vapor Analyzer (Light-915M2) Features

  • Exceptional sensitivity: detection limit of 0.02 μg/m³
  • Real-time operation at 1 reading per second display, adjustable averaging
  • Fully automated with built-in test cell and auto zero
  • NIST traceable calibration
  • Wide dynamic range: 5 orders of magnitude
  • No memory effect
  • Integrated data storage for 12+ working days (at 10 sec averaging) with anytime data transferring to a USB drive
  • Battery up to 12 hours of continuous operation (charging time is 3.5 hours)
  • Versatile design for indoor and outdoor applications

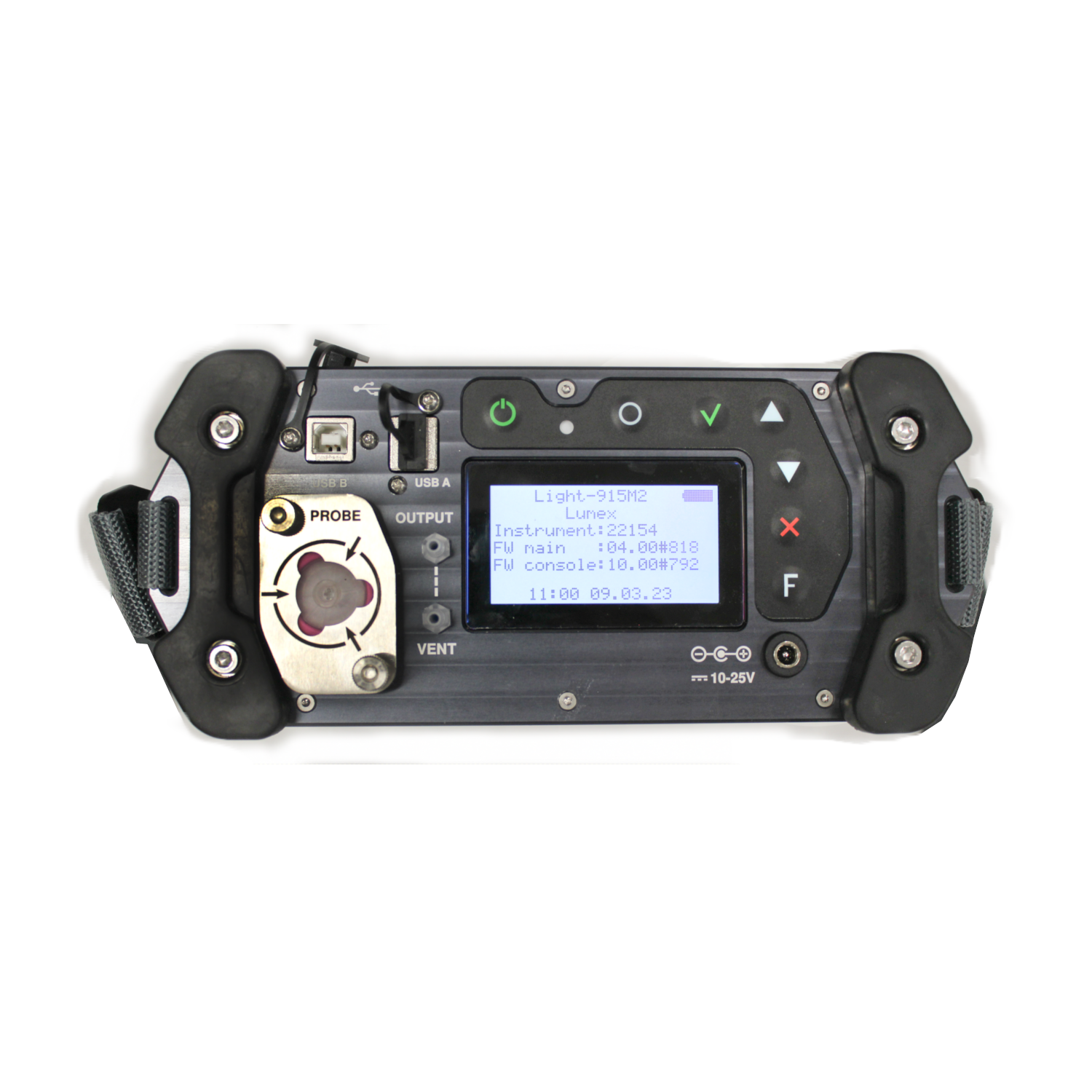

  • Convenient and reliable keyboard
  • Anti-reflective tempered glass on the screen
  • Digital output: USB-B data exchange interface
  • USB-A host connector for peripheral devices
  • Quick and easy maintenance
  • Enhanced contamination protection system
  • Catalyst and carrier gas-free operation

Mercury Vapor Analyzer (Light-915M2) Technical Specifications

Detection limit Measurement Range Sampling Rate Size Weight Power Supply Display Resolution Response Time
0,02μg/m³ 0-200μg/m³ 1 l/min 264×242×110 mm 4.3kg 10-25 VDC, 40W Max
External power adapter
100/240 VAC, 18 VDC (Included)
0.01μg/m³ (for range 0-0.99 μg/m³)
0.1μg/m³ (for range 1-99μg/m³)
1μg/m³ (for range >100μg/m³)
1 reading per second

Typical Applications for Mercury Vapor Analyzer (Light-915M2)

  • Workplace safety
  • Environmental monitoring
  • Mercury spill response screening
  • Hazardous waste inspection
  • Contaminated site investigation
  • Mercury measurement in scientific research
  • Occupational and industrial hygiene monitoring

Available Measurements for Mercury Vapor Analyzer (Light-915M2)
