Gaseous Fuels Mercury Sorbent Trap Sampling Systems

For use with Gold Sorbent Traps in Sampling Natural Gas

Available for Download

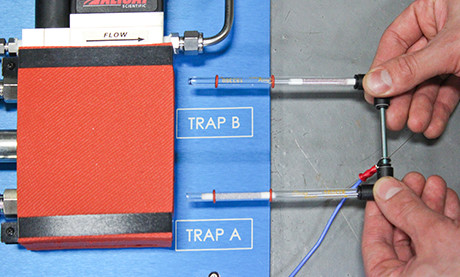

This sorbent trap sampling system is specifically designed for testing mercury (Hg) in natural gas with gold sorbent traps for ASTM Methods D5954, D6350, or other similar applications. Simply insert two gold sorbent traps into the heated chamber, start the system, and wait until the mass flow controller totalizer displays the desired sample volume.

Product Details

Gaseous Fuels Mercury Sorbent Trap Sampling Systems Features

  • Suitable for Class 1 Division 2 hazardous areas
  • Accurately control flow with a simple-to-use mass flow controller
  • Heated sorbent trap pocket to prevent condensation
  • Compact and portable
  • Wetted surfaces coated with SilcoNert  2000

Options

Mount in a transportable enclosure

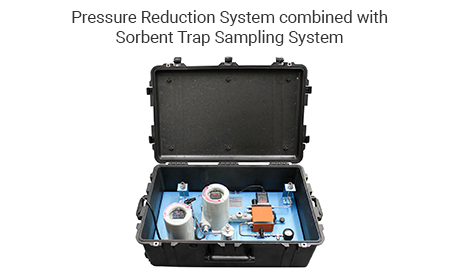

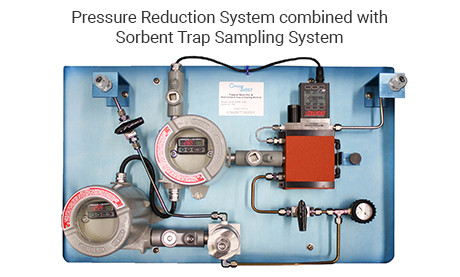

Combine with Pressure Reduction Module on one panel, or in one transportable enclosure

Gaseous Fuels Mercury Sorbent Trap Sampling Systems Technical Specifications

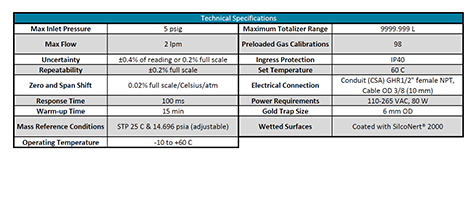

Technical Specifications
Max Inlet Pressure 5 psig
Max Flow 2 lpm
Uncertainty ±0.4% of reading or 0.2% full scale
Repeatability ±0.2% full scale
Zero and Span Shift 0.02% full scale/Celsius/atm
Response Time 100 ms
Warm-up Time 15 min
Mass Reference Conditions STP 25 C & 14.696 psia (adjustable)
Operating Temperature -10 to +60° C
Maximum Totalizer Range 9999.999 L
Preloaded Gas Calibrations 98
Ingress Protection IP40
Set Temperature 60° C
Electrical Connection Conduit (CSA) GHR ½” female NPT, Cable OD 3/8” (10 mm)
Power Requirements 110-265 VAC, 80W
Gold Trap Size 6 mm OD
Wetted Surfaces Coated with SilcoNert® 2000

Typical Applications for Gaseous Fuels Mercury Sorbent Trap Sampling Systems

  • NG
  • LNG

Available Measurements for Gaseous Fuels Mercury Sorbent Trap Sampling Systems

Mercury
