Mercury Sorbent Traps – Speciation

Modified Method 30B for speciation data

Available for Download

Mercury (Hg) speciation sorbent traps are designed to differentiate between elemental and oxidized mercury in the flue gas by capturing the different species in their respective designated sections.

If you need to know your proportion of Oxidized to Elemental Hg, then speciation traps are the solution. These 5 section traps allow you to separate the Hg into the two species.

Currently, there is no method specific to speciation traps, but Method 30B is a great option. When followed, the results are reliable, accurate, and very informative. It is the best way to tell if your Continuous Emissions Mercury Monitors (CEMMs) are working correctly and to evaluate control technologies.

Product Details

Mercury Sorbent Traps – Speciation Features

  • Proprietary “zero” mercury carbon manufacturing process eliminates background Hg
  • Halogen impregnated carbon optimizes mercury capture
  • Strict manufacturing QA/QC procedures
  • Two types of sorbent allow you to capture oxidized and elemental Hg separately
  • Made with durable glass for rugged field use
  • Moisture resistant
  • Acid gas scrubbers included
  • Can be used in “wet” and “dry” stacks, as well as high particulate sources

Options

Sorbent trap length
Spike levels
Filtering techniques
Standard or high-flow glass
Others depending on flue gas conditions

Mercury Sorbent Traps – Speciation Technical Specifications

Please see attached flyer

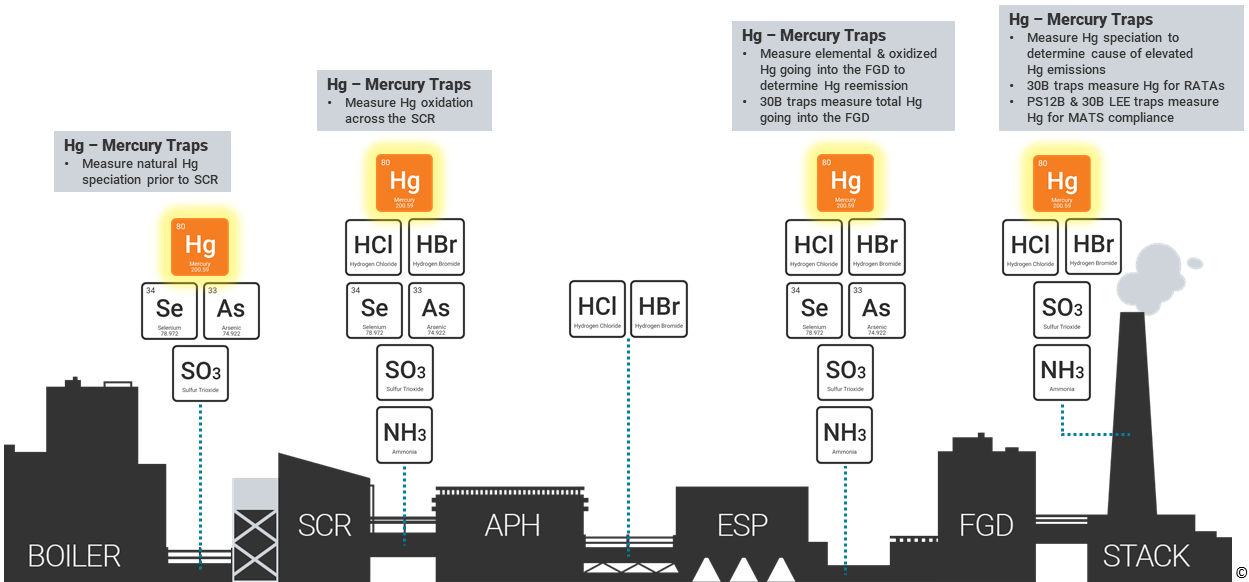

Typical Applications for Mercury Sorbent Traps – Speciation

  • Verify Continuous Emissions Mercury Monitors (CEMMs)
  • Measure natural Hg speciation prior to SCR
  • Determine cause of elevated Hg emissions

Available Measurements for Mercury Sorbent Traps – Speciation
